AI Assistant for WAAP

Published April 5, 2023 | Last modified August 20, 2026

Objective

This document discusses how artificial intelligence (AI) is used to support and enhance the Web App & API Protection (WAAP) workspace.

F5® Distributed Cloud Services provides the WAAP workspace to help you mitigate application threats and vulnerabilities across multi-cloud and edge environments. WAAP provides a number of security related features including a web application firewall (WAF), DDoS mitigation, bot defense, API security, and client-side defense.

Currently, AI is used to help you understand certain security related incidents through the AI Assistant. Using the WAAP UI, you can ask the AI Assistant to explain something, and it will look into the issue and provide an analysis, possible follow-up actions, and more details on the incident.

You can also ask the AI Assistant questions that get more information or other information. This includes the ability to handle Distributed Cloud Services documentation queries, reference relevant materials for follow-ups, and utilize session context to enable seamless, ongoing conversations. You can also constrain you queries to specific time frames:

Supported timeframes: Today, Yesterday, Between two dates, and more.
Supported timestamp formats: ISO 8601, UTC Zulu, SQL Datetime, Common Log Format, RFC 2822, and others.
Outputs are standardized in ISO 8601 Format (YYYY-MM-DDTHH:MM:SS).

Prerequisites

A Distributed Cloud Services Account. If you do not have an account, see Getting Started with Console.

Invoke the AI Assistant

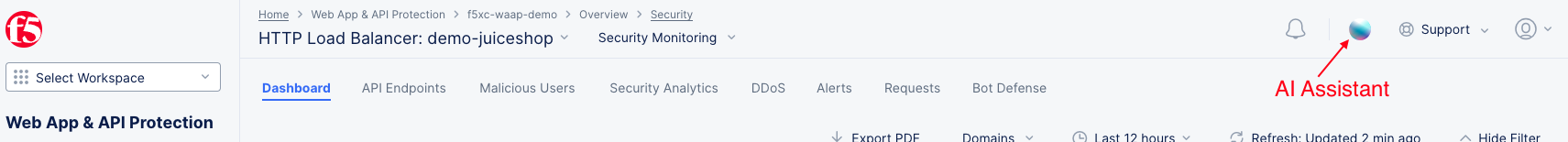

Figure: AI Assistant Orb

Log into the Console and notice the multi-colored orb in the upper right.
Click the AI Assistant orb to display the AI Assistant window.
Using the three buttons in the upper right, you can:
- Dock or undock the AI Assistant.
- Switch between large and small AI Assistant windows.
- Hide the AI Assistant.

The AI Assistant will remember your choices and use them for the next invocation.

The AI Assistant will also be displayed.

Explain a Security Event or Incident

Security events are shown on the Security Overview page under Security Analytics.

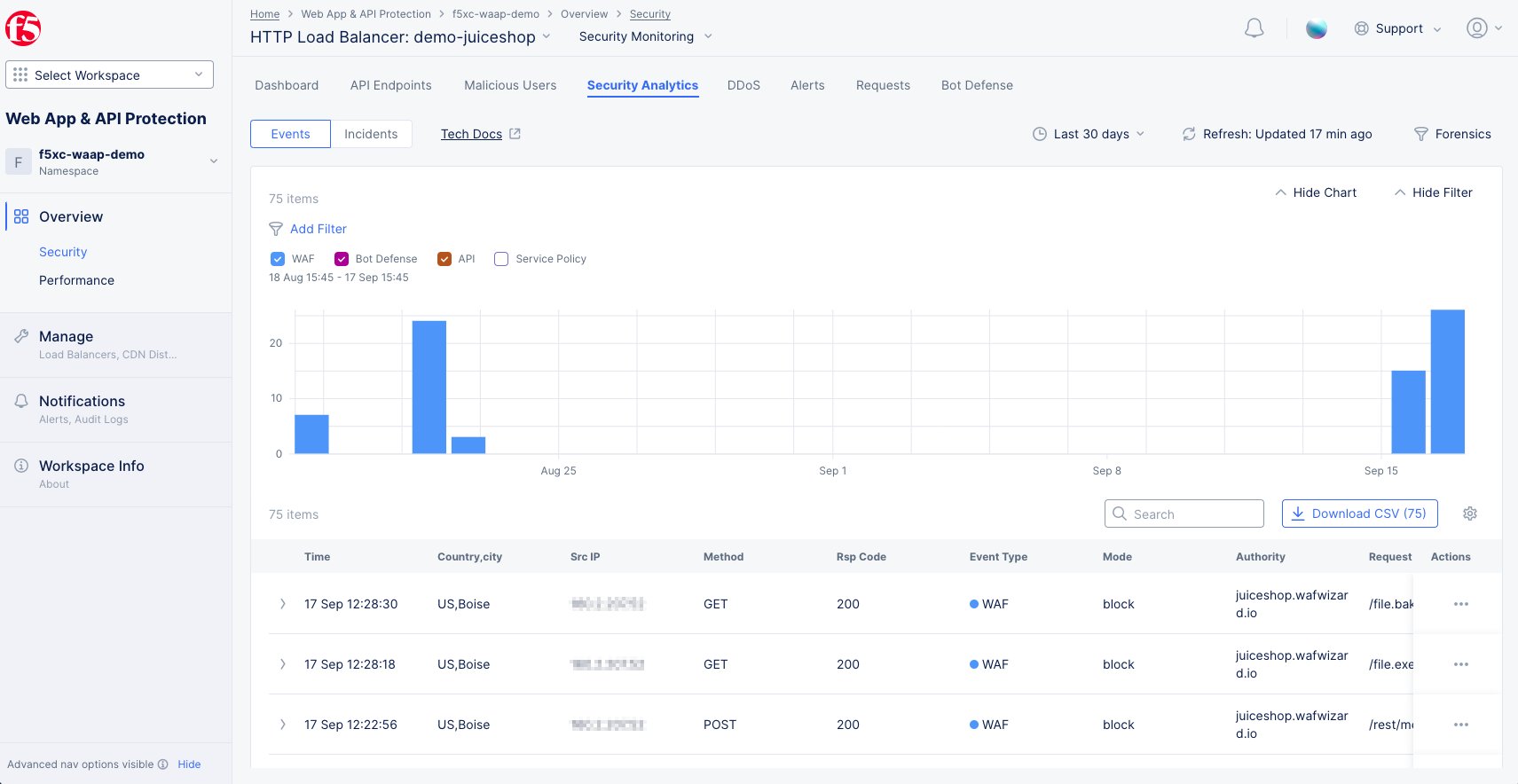

Figure: Security Analytics Page

Explain a Security Event.

Log into the Console and Select the Web App & API Protection workspace.
Select your namespace from the Namespace drop-down menu in the left pane.
In the Delivery Resources widget at the bottom of the page, click a delivery resource name to view its specific security overview page.
Select the Security Analytics tab.
Set the Events | Incidents selector above the graph to Events.
Find the event you want to analyze in the events list at the bottom of the page. You may find it helpful to change the time period above the graph on the right.
For the event in question, click ... > Explain with AI in the Action column.

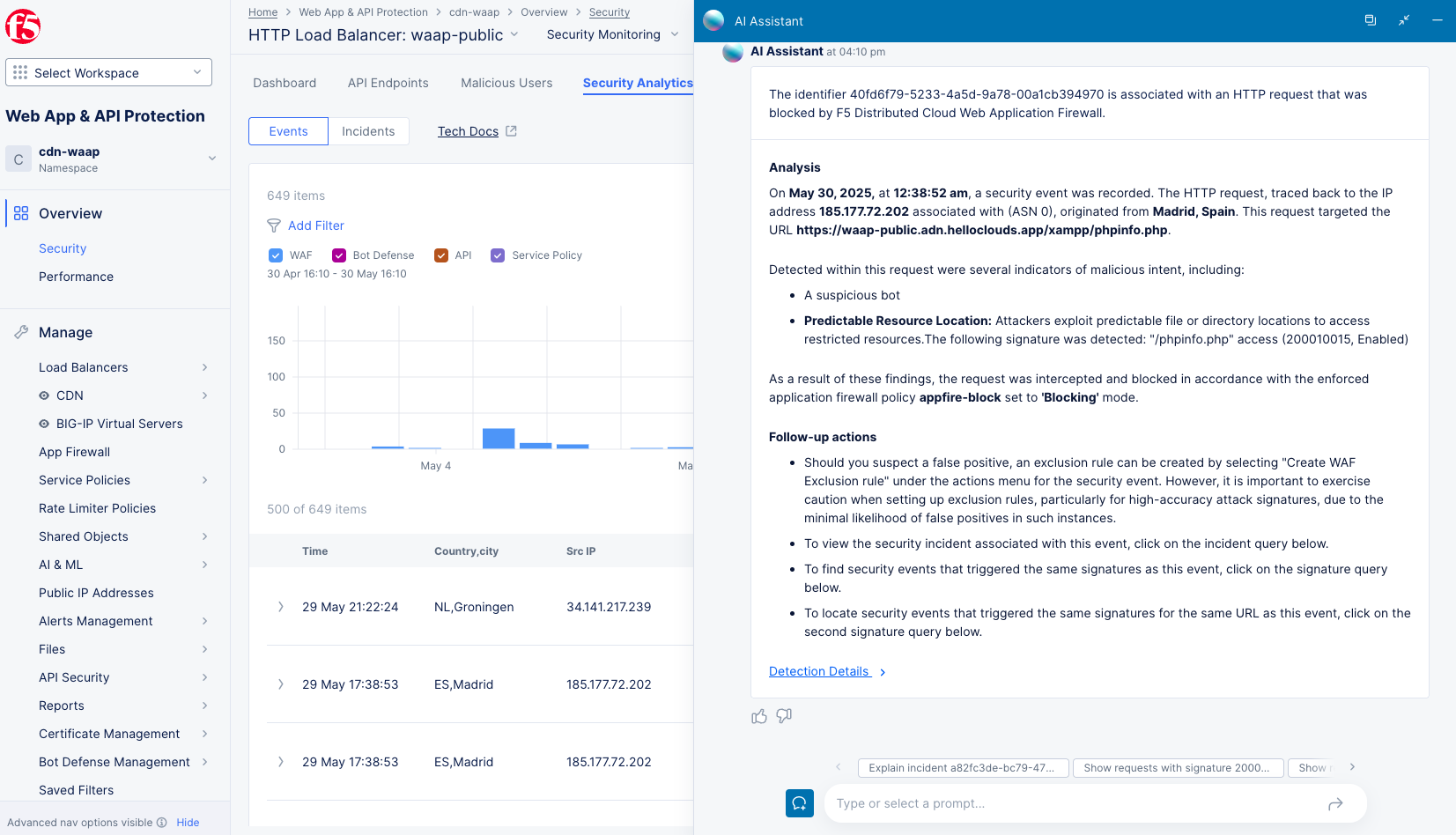

Figure: Security Analytics Event AI Assistant Explanation

You are now using the AI assistant, and it is showing the results of your implied question. It first provides an overview of the event, followed by an analysis, and then suggested follow-up actions.

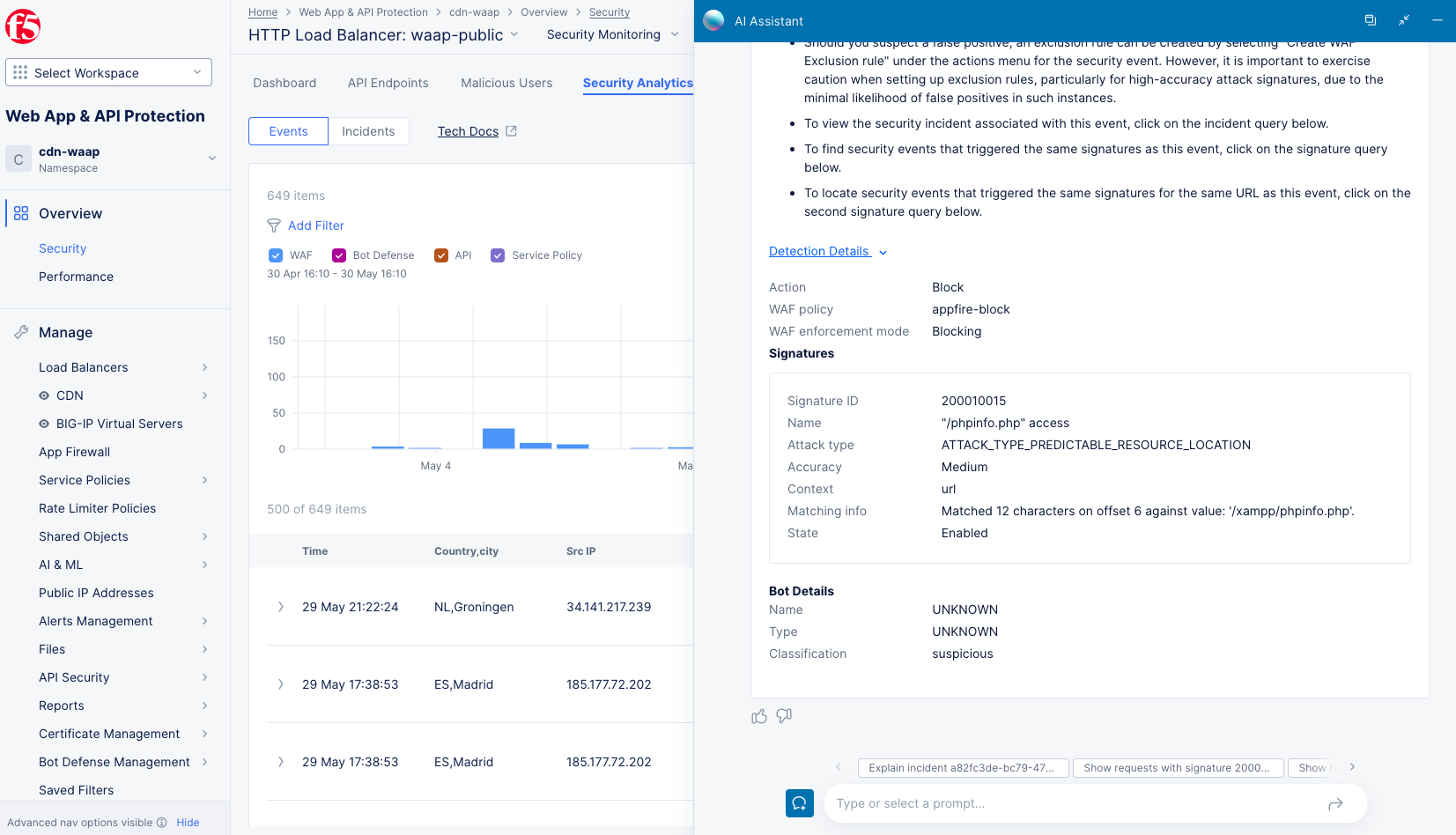

You can click Detection Details for more information.

Figure: Security Analytics Event AI Assistant Explanation

Depending on the type of event, you may see information, such as:
- TLS Fingerprint: Analyze traffic patterns based on TLS metadata
- Signature IDs (signatures.id): Identify attacks linked to specific signatures
- Request Path (req_path): Focus on traffic targeting specific resource paths
- Country filtering now supports country codes in addition to country names

Explain a Security Incident.

Log into the Console and Select the Web App & API Protection workspace.
Select your namespace from the Namespace drop-down menu in the left pane.
In the Delivery Resources widget at the bottom of the page, click a delivery resource name to view its specific security overview page.
Select the Security Analytics tab.
Set the Events | Incidents selector above the graph to Incidents.

Figure: Security Analytics Incidents Tab

Find the event you want to analyze in the incidents list at the bottom of the page. You may find it helpful to change the time period above the list on the right.
For the incident in question, click the AI Assistant orb in the Action column.

Figure: Security Analytics Incident AI Assistant Explanation

You are now using the AI assistant, and it is showing the results of your implied question. It first provides an overview of the event, followed by an analysis, and then suggested follow-up actions.
Depending on the type of incident, you may see information, such as:
- Key attributes: Source IP, ASN, Country, and TLS fingerprint
- Incident-specific details such as intent, number of events, attack types, and signature IDs
- Recommends enabling Blocking Mode when it is not already configured
- Shows the attack types if they differ meaningfully from the intent

Explain a Request

Requests are shown on the Performance Overview page under Requests.

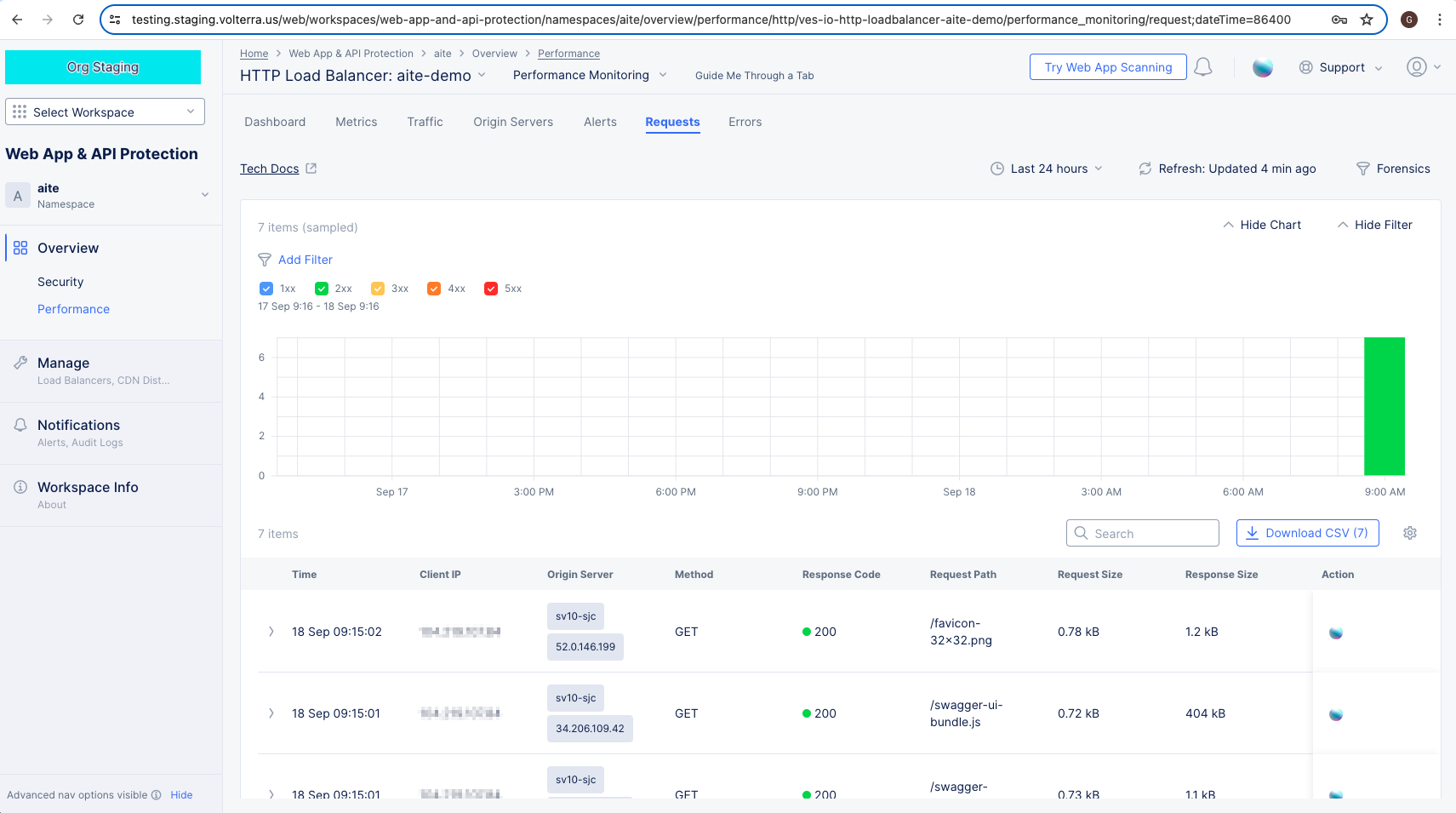

Figure: Performance Requests Page

Explain a Request.

Log into the Console and select the Web App & API Protection workspace.
Navigate to Overview > Performance and select the Requests tab.
Find the request you want to analyze in the request list at the bottom of the page. You may find it helpful to change the time period above the graph on the right and/or use the Search field to narrow the list of requests in the table.
For the request in question, click ... > Explain with AI.

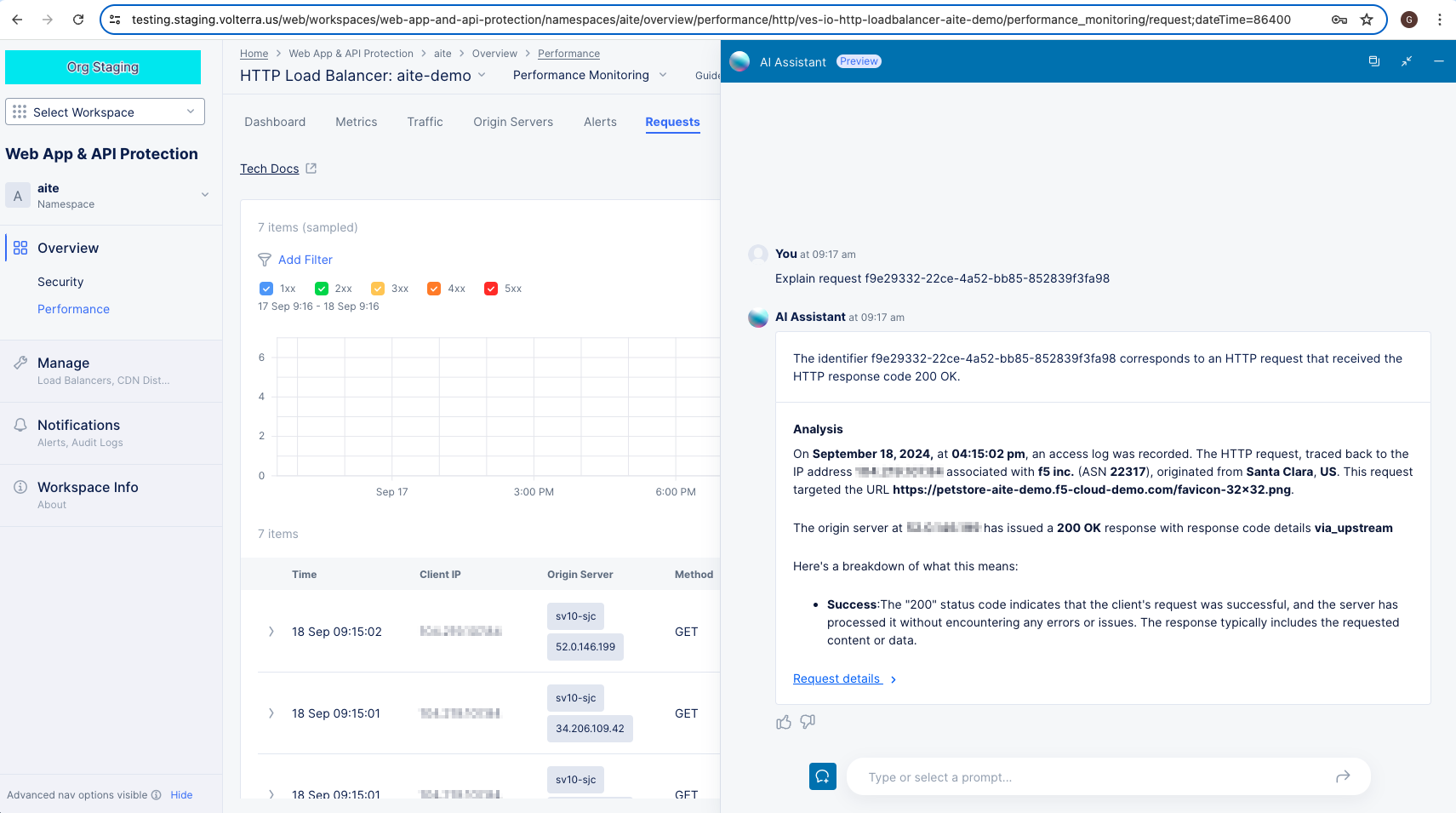

Figure: Performance Requests AI Assistant Explanation

You are now using the AI assistant, and it is showing the results of your implied question.
